CATALINA 30 Detailed Review

1 of 3

If you are a boat enthusiast looking to get more information on specs, built, make, etc. of different boats, then here is a complete review of CATALINA 30. Built by Catalina Yachts and designed by Frank W. Butler, the boat was first built in 1976. It has a hull type of Fin w/spade rudder and LOA is 9.12. Its sail area/displacement ratio 15.22. Its auxiliary power tank, manufactured by Var., runs on Var..

CATALINA 30 has retained its value as a result of superior building, a solid reputation, and a devoted owner base. Read on to find out more about CATALINA 30 and decide if it is a fit for your boating needs.

Boat Information

Boat Specifications

LOA:9.12 m / 29.92 ft

Rigging Type:Masthead Sloop

Hull Type:Fin w/spade rudder

S.A. (reported):41.43 m² / 445.95 ft²

Draft (max):1.6 m / 5.25 ft

Displacement:4627 kg / 10200.78 lbs

Ballast:1905 kg / 4199.80 lbs

S.A./Disp.:15.22

Bal./Disp.:41.18

Disp./Len.:291.43

Construction:FG

Ballast Type:Lead

Last Built:2008

Designers:Frank W. Butler

LWL:7.62 m / 25.00 ft

Sail Boat Calculation

Definitions

Comfort Ratio:24.93

Capsize Screening Formula:2.00

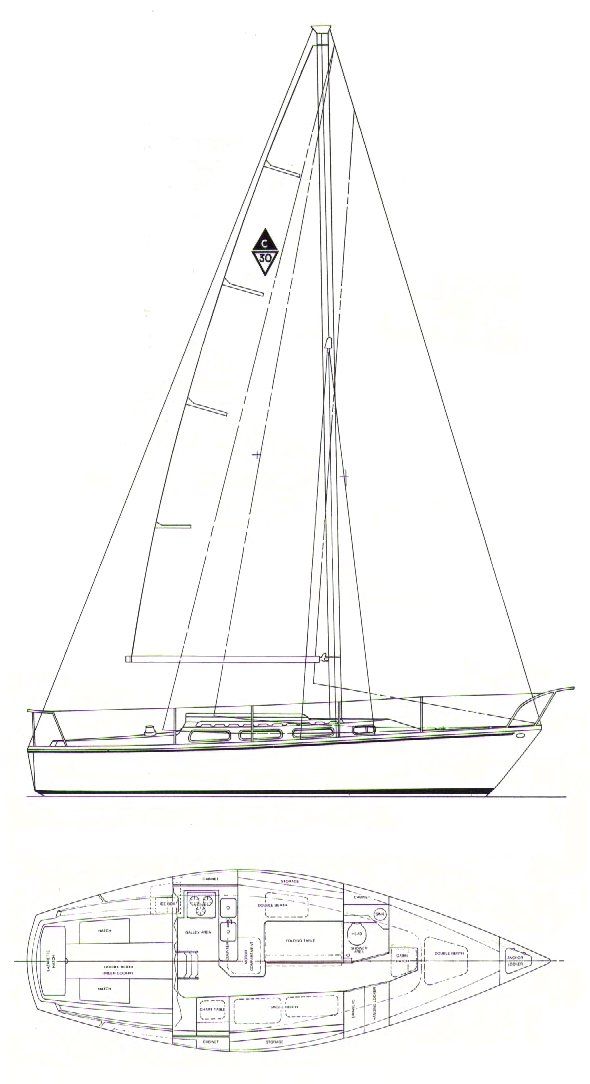

Rig And Sail Specs

Help?

I:12.5 m / 41.01 ft

S.A. Fore:10.67 m / 35.01 ft

E:3.51 m / 11.52 ft

S.A. Fore:21.9 m² / 235.73 ft²

S.A. Main:18.7 m² / 201.29 ft²

S.A. Total (100% Fore + Main Triangles)40.6 m² / 437.01 ft²

Auxillary Power Tank

Make:Var.

Type:Var.

Fuel:79 L / 20.87 gals

Accomodations

Headroom:1.91 m / 6.27 ft

Contributions

Builders:Catalina Yachts

Designers:Frank W. Butler

FAQ

Who designed the CATALINA 30?

CATALINA 30 was designed by Frank W. Butler.

Who builds CATALINA 30?

CATALINA 30 is built by Catalina Yachts.

When was CATALINA 30 first built?

CATALINA 30 was first built in 1976.

How long is CATALINA 30?

CATALINA 30 is 7.62 m in length.

What is mast height on CATALINA 30?

CATALINA 30 has a mast height of 10.67 m.
